Ecler ePlayer1

ePlayer1


Streaming & Local Media Audio Player

 ECLER ESSENTIALS ePLAYER1 is a compact audio player with a stereo output that can play music contents from local storage media (USB/SD card), Internet streams or digital sharing streams (DLNA and Airplay compatible).  It includes Ethernet port, WiFi connection, USB and SD reader slots, front panel LCD display and local controls.

Product Datasheet

Key Features
• Single-deck audio player
• Stereo output, RCA connectors
• Internet streaming receiver
• Digital sharing streams receiver (DLNA and Airplay)
• Local media player (from USB and SD card slots)
• Front panel LCD display and local controls
• 2 GPI control ports to trigger events (priority message playback, music playlist load, preset activation, MUTE function, etc.)
• SILENCE detection to trigger an event (e.g.: switch to SD/USB local contents in case of Internet streaming interruption)
• Quick Online Update: Direct Firmware’s update from Internet, just pressing PLAY button while the device is starting.


Applications

• Audio sound source in A/V corporate, retail and education applications
• BGM & Paging solutions, with message triggering and program BGM
• Integration in installation global control systems

Audio DAC Specs 24bit / 48kHz, compatible with mp3, ogg, WAV, AAC

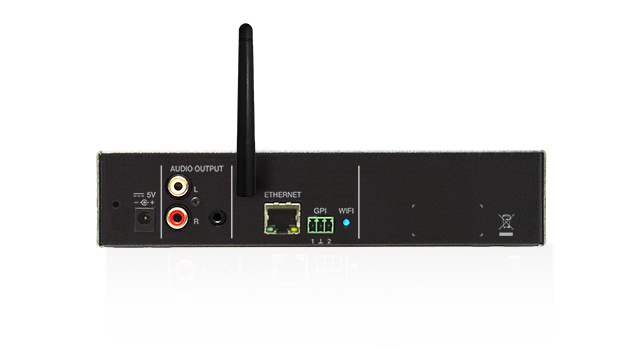

Audio Outputs 1 x stereo unbalanced, LINE level, RCA type + minijack
Communication Interfaces 1 x Ethernet (RJ45), 1 x WiFi, 2 x GPI (0-10 VDC)
Local media USB, SD/SDHC
Dimensions 241mm x 44mm x 152mm
Weight 680 g.
Others RTC included, 120 hours aprox.
